| Packing: | Standard Export Pakage |
|---|---|
| Model NO.: | KA-HF-2X13W |
| Productivity: | 50, 000 PCS/Month |
| Trademark: | KAIAU |
| Origin: | Mainland China |
| Min. Order: | 1 Piece |
| Transportation: | by Air,by Ship or by Courier |
| Type: | Doppler Sensor Light |
| Theory: | doppler radar |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
KA-HF-2X13W Microwave sensor ceiling light specification:
Power supply:220-240V/AC
Power frequency:50Hz
Installation:indoors, ceiling mounting
HF system:5.8GHz CW radar，ISM band
Transmission power:<0.3mW
Rated load:2X13W
Detection angle:360°
Reach:1-10m(radii.), adjustable
Time setting:10sec to 30min
Light control:2LUX/50LUX/150LUX/2000LUX
Power consumption:approx. <0.9W
KA-HF-2X13W Features:
This product appearance is concise, easy, use range (sitting room, bedroom, study,
corridor, etc), function of advanced internal microwave sensors try products
humanized control.
The microwave sensors is according to the microwave doppler effect <the basic
principle of radar> , it can be widely used in as automatic control switch, the
security system, and automatic video control system of ATM, as well as other
automatic induction control area. The detection way has the below advantages
compared with other as follows: 1. Non-contact detection, 2. Suitable for bad
environment, immune to temperature, humidity, noise, air, dust, light…3.RF
interference ability, 4.Transmission power only 0.3 mW, It will not harm the human
body. Simple installation+ easy wiring. We use appropriative micro processing
integrator, not only for high sensitivity and wide range of detection, and on very
reliable work, error rate is extremely low, It can stable working on the temperature
range: - 15 ~ + 70 degrees.

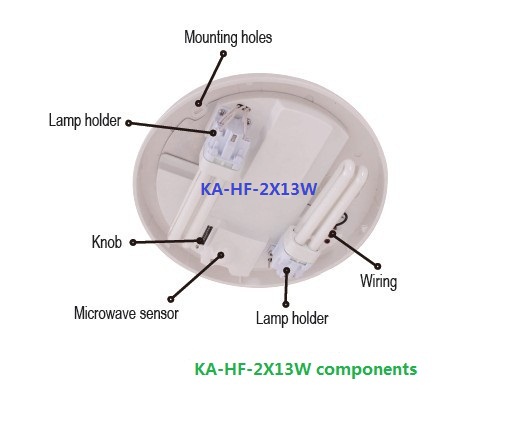

KA-HF-2X13W inside view:
