| Packing: | Standard Export Package |
|---|---|
| Model NO.: | KA-DP10 |
| Productivity: | 20, 000 Pieces/Month |
| Unit Price: | Negotiable |
| Shipment Terms: | FOB,CFR,CIF |
| Payment Terms: | T/T,L/C |
| Minimum Order: | 1 Pieces |
| Price Valid Time: | |
| Trademark: | Kaiau |
| Origin: | Mainland China |
| Usage: | Lighting |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
KA-DP10 Dimmalbe Microwave Sensor Specification:
Power source:90-240V/AC
Power frequency: 50/60Hz
Rated load:200W Max. (220VAC Fluorescent)
HF system: 5.8GHz CW radar，ISM band
Installation sit: Ceiling mounting,Wall installation
Transmission power: <0.2mW
Detection range:
1m/2m/3m/4m/5m/7m/9m/12m(radii.)
Light-control: 15-330LUX
Detection angle: 360°(Ceiling installation)
180°(wall installation)
Time setting: delay time:10sec/20sec/30sec/50sec/
90sec /150sec/210sec/300sec
half bright state(standby time):
0.5min/1min/3min/5min/
10min/20min/40min/60min
Standby power: Approx. 0.5W

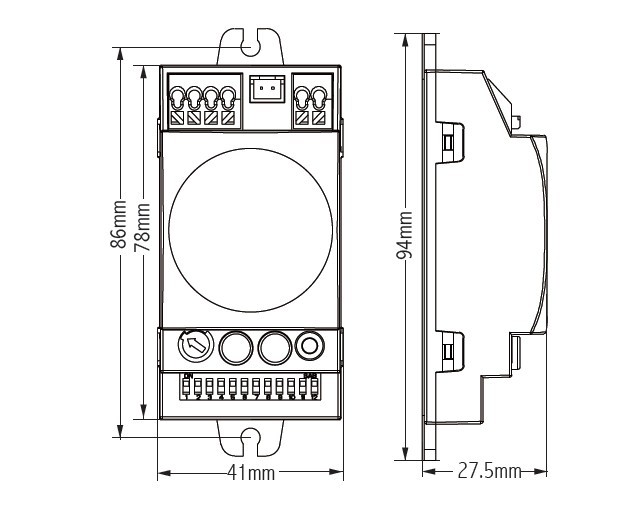

Product Dimension:
