| Packing: | Standard Export Package |
|---|---|
| Model NO.: | KA-DP11 |
| Productivity: | 20, 000 Pieces/Month |
| Unit Price: | Negotiable |
| Shipment Terms: | FOB,CFR,CIF |
| Payment Terms: | T/T,L/C |
| Minimum Order: | 1 Pieces |
| Price Valid Time: | |
| Trademark: | Kaiau |
| Origin: | Mainland China |
| Usage: | Lighting |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
KA-DP11 Microwave Sensor Specification:
Power source:220V/AC
Power frequency: 50Hz
Rated load: 500W Max.(220VAC tungsten cosφ=1)
200W Max.(220VAC fluorescent cosφ=0.5)
HF system: 5.8GHz CW radar，ISM band
Installation sit: Ceiling mounting,Wall installation
Transmission power: <0.2mW
Detection angle: 360°(Ceiling installation);180°(wall installation)
Detection range: 1-12m(radii.) (adjustable)
Time setting: 8sec/30sec/90sec/6min/20min/30min.(adjustable)
Light-control: 10LUX/25LUX/50LUX/150LUX/2000LUX.(adjustable)
Standby power: Approx. 0.5W

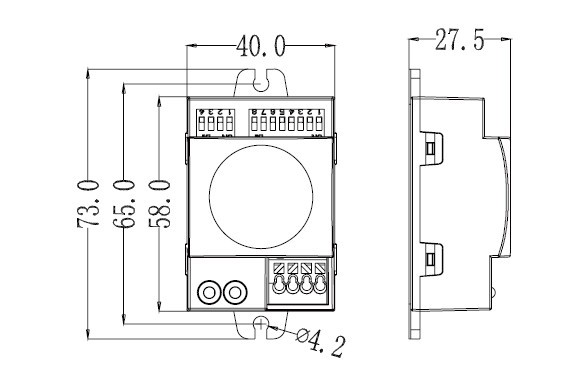

KA-DP11 Dimension:
KA-DP11 Wiring Diagram:
