| Packing: | Standard Export Package |
|---|---|
| Model NO.: | KA-DP02R |
| Productivity: | 20, 000 Pieces/Month |
| Unit Price: | Negotiable |
| Shipment Terms: | FOB,CFR,CIF |
| Payment Terms: | T/T,L/C |
| Minimum Order: | 1 Pieces |
| Price Valid Time: | |
| Trademark: | Kaiau |
| Origin: | Mainland China |
| Usage: | Lighting |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
KA-DP02R Remote Control Microwave Sensor Specification:
Power source:220-240V/AC
Power frequency:50/60Hz
Rated load:1200W Max. (220VAC tungsten cosφ=1)
150W Max. (220VAC fluorescent cosφ=0.5)
Installation height: 2.5~3.5m (ceiling mounting)
HF system:5.8GHz CW electric wave，ISM band
Transmission power:<0.2mW
Detection angle:360°
Detection range:1.5-8m（radii.）(adjustable)
Detection motion speed: 0.5~1.2m/s
Time setting:8sec to 12min (adjustable)
Light-control:10~>1000LUX (adjustable)
Standby power:approx.0.9W
Working temperature:-15°C~+70°C

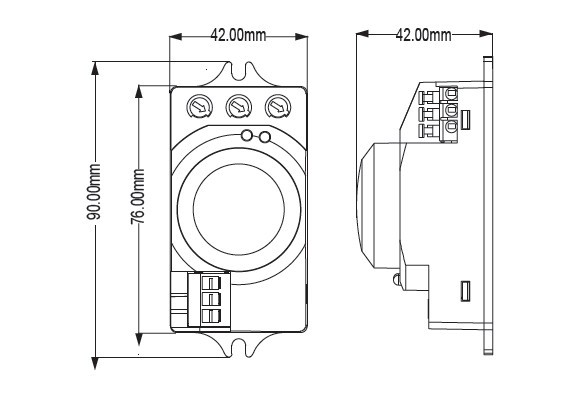

KA-DP02R Dimension:

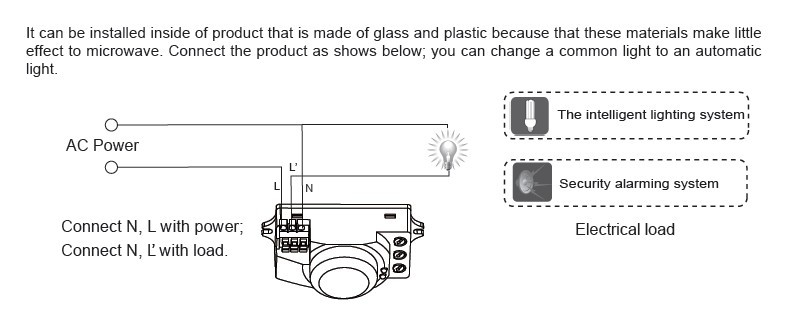

KA-DP02R Wiring Diagram:
