| Packing: | Standard Export Package |
|---|---|
| Model NO.: | KA-S66 |
| Productivity: | 120, 000 PCS/Month |
| Trademark: | KAIAU |
| Origin: | Mainland China |
| Min. Order: | 1 Piece |
| Transportation: | by Sea,by Air or by Courier |
| Principle: | Infrared |
| Wires: | |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
KA-S66 Ceiling Flush Mount Sensor Specification:
Power source: 220-240V/AC
Power frequency: 50Hz
Rated load: 300W Max.tungsten
100W Max.fluorescent
Time setting: (8¡À2)S-(6¡À2)Min (adjustable)
Light-control: <10LUX~2000LUX (adjustable)
Detection range: 8m Max (dia.) (adjustable)
Detection angle: 360¡ã
Installation height: 2.5m~3.5m
Working temperature: -10~+40¡ãC
Detection motion speed: 0.6~1.5m/s
Working humidity: <93%RH
Standby power: 0.45W(static 0.1W)

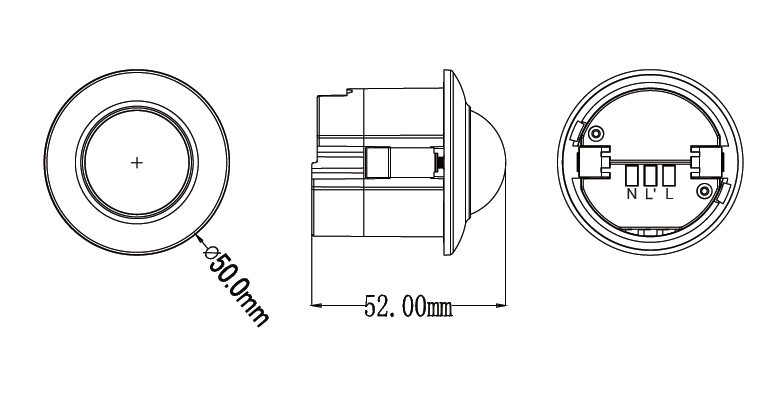

KA-S66 Dimension:
KA-S66 Wiring Diagram:
